HV GaN FETs

Part No.	Configuration	Voltage rating	RDS(on)_typ	RDS(on)_max	Package	View	Status	Datasheet
CG65030TAD (G2)	Single	650 V	25 mΩ	30 mΩ	TOLL		MP
CG65030TBD (G2)	Single	650 V	25 mΩ	30 mΩ	TOLT		MP
CG65050DAD (G2)	Single	650 V	38 mΩ	50 mΩ	DFN8*8		MP
CG65050TAD (G2)	Single	650 V	39 mΩ	50 mΩ	TOLL		MP
CG65050TBD (G2)	Single	650 V	39 mΩ	50 mΩ	TOLT		Eng
CG65065DAD (G2)	Single	650 V	50 mΩ	65 mΩ	DFN8*8		MP
CG65065TAD (G2)	Single	650 V	50 mΩ	65 mΩ	TOLL		MP
CG70200DAD (G2)	Single	700 V	120 mΩ	200 mΩ	DFN8*8		MP
CG70200DBD (G2)	Single	700 V	120 mΩ	200 mΩ	DFN5*6		MP
CG65140DAA	Single	650 V	100 mΩ	140 mΩ	DFN8*8		MP
CG65140DBA	Single	650 V	100 mΩ	140 mΩ	DFN5*6		MP
CG65200DAA	Single	650 V	160 mΩ	200 mΩ	DFN8*8		MP
CG65200DBA	Single	650 V	160 mΩ	200 mΩ	DFN5*6		MP
CG65200TDA	Single	650 V	160 mΩ	200 mΩ	TO252-3L		MP
CG65200TCA	Single	650 V	160 mΩ	200 mΩ	TO220F		MP
CG65480DBA	Single	650 V	330 mΩ	480 mΩ	DFN5*6		MP

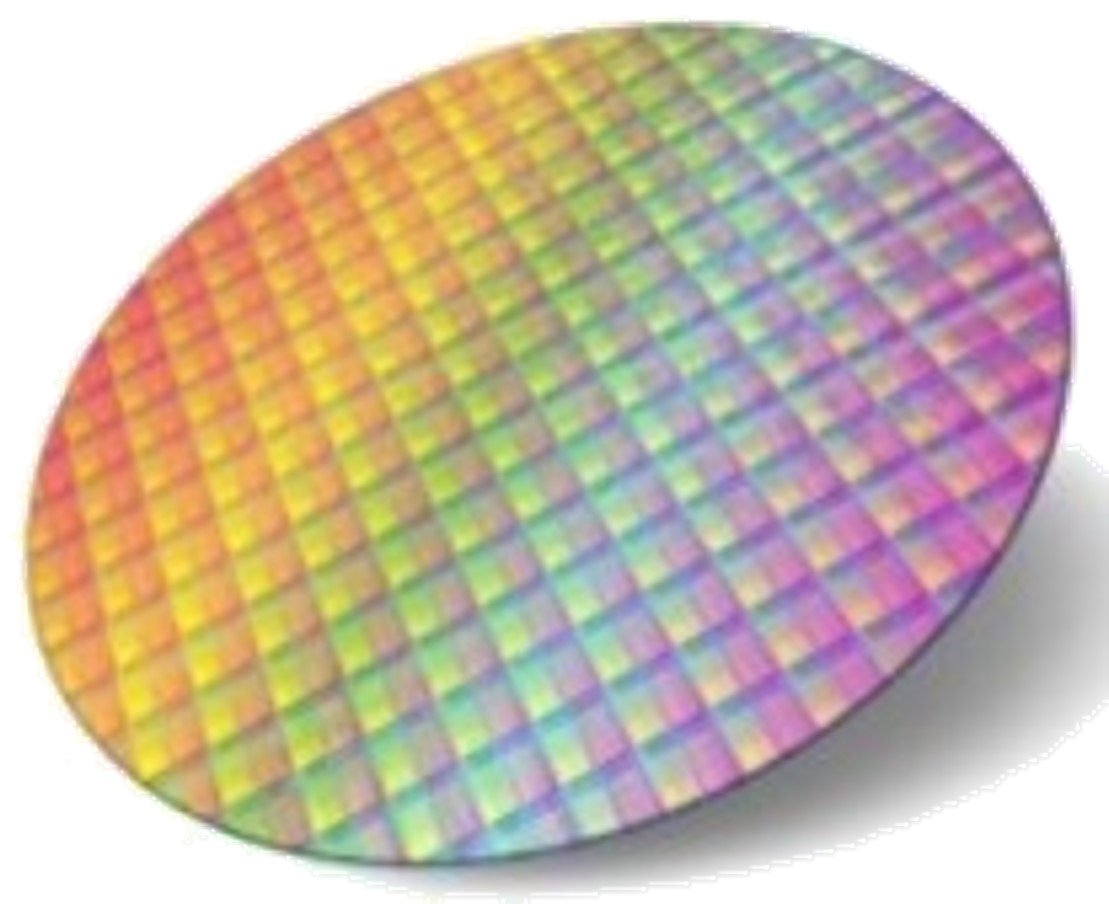

CG65065D0-WF	Single	650 V	50 mΩ	65 mΩ	Wafer		MP
CG65030D0-WF	Single	650 V	25 mΩ	30 mΩ	Wafer		MP
CG65012CAD (G2)	Single	650 V	10 mΩ	12 mΩ	Bare Die		Sample available

LV GaN FETs

Part No.	Configuration	Voltage rating	RDS(on)_typ	RDS(on)_max	Package	View	Status	Datasheet

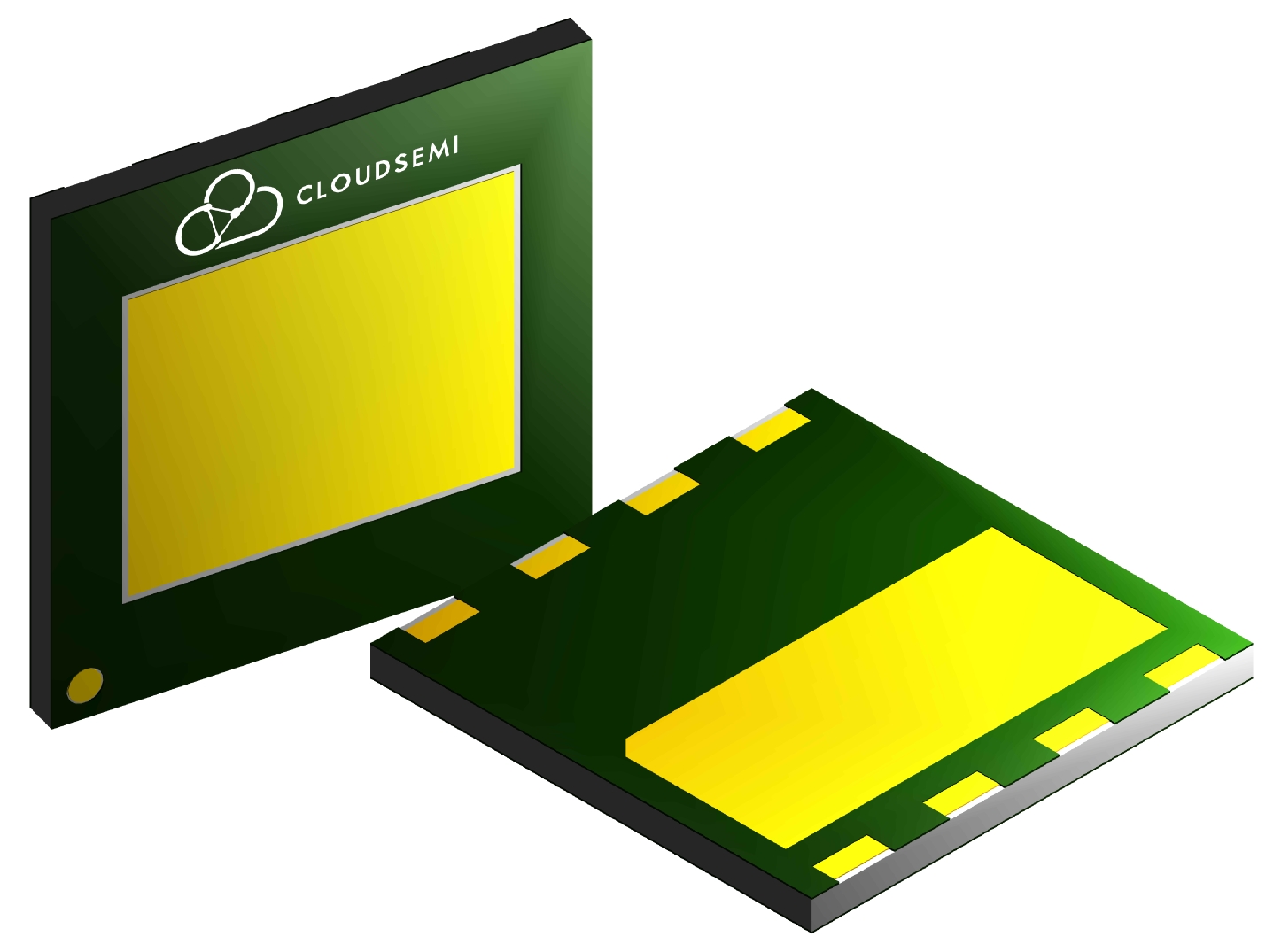

CG10070EAD	Single	100 V	5.5 mΩ	7.0 mΩ	ECP		Sample, 24Q4
CG10035EAD	Single	100 V	2.7 mΩ	3.5 mΩ	ECP		Sample, 25Q1
